ASVG ADVANCED STATIC VAR GENERATOR – ULTRA SERIES

Ultra ASVG with Silicon Carbide Mosfet design is a high performance, energy efficient reactive power management solution with the added benefit of combining harmonic mitigation, that is ideal for a wide range of applications including industrial, commercial and electricity networks. It offers unparalleled performance and reliability, helping you save money, and improve the efficiency of your power system.

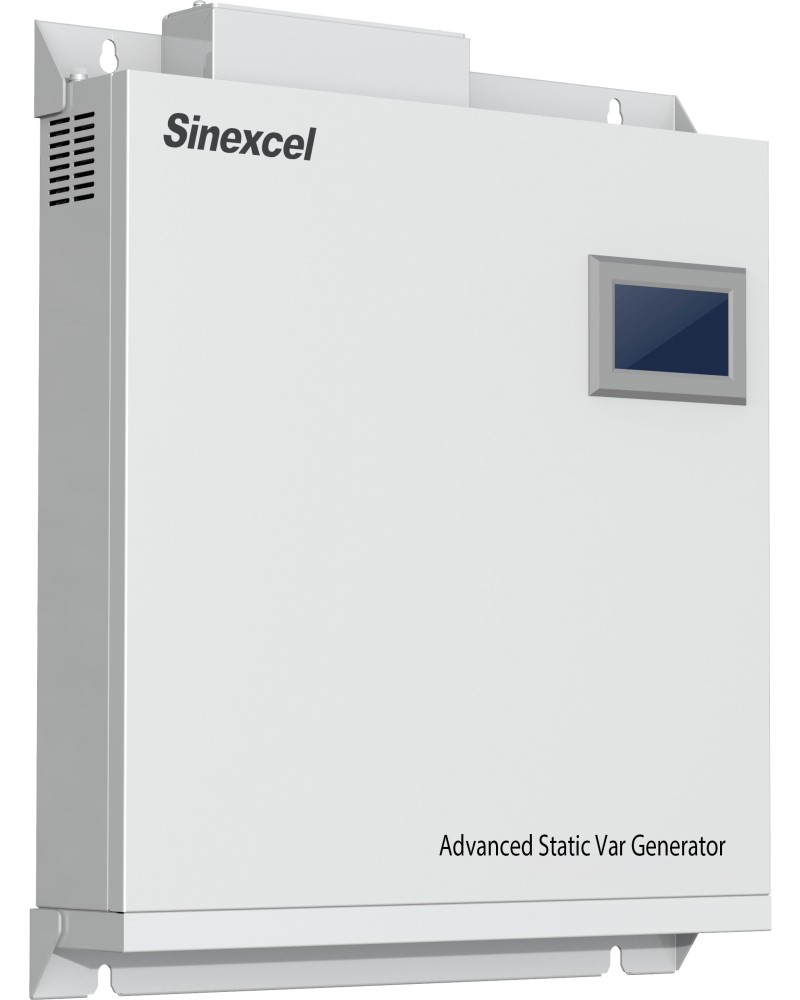

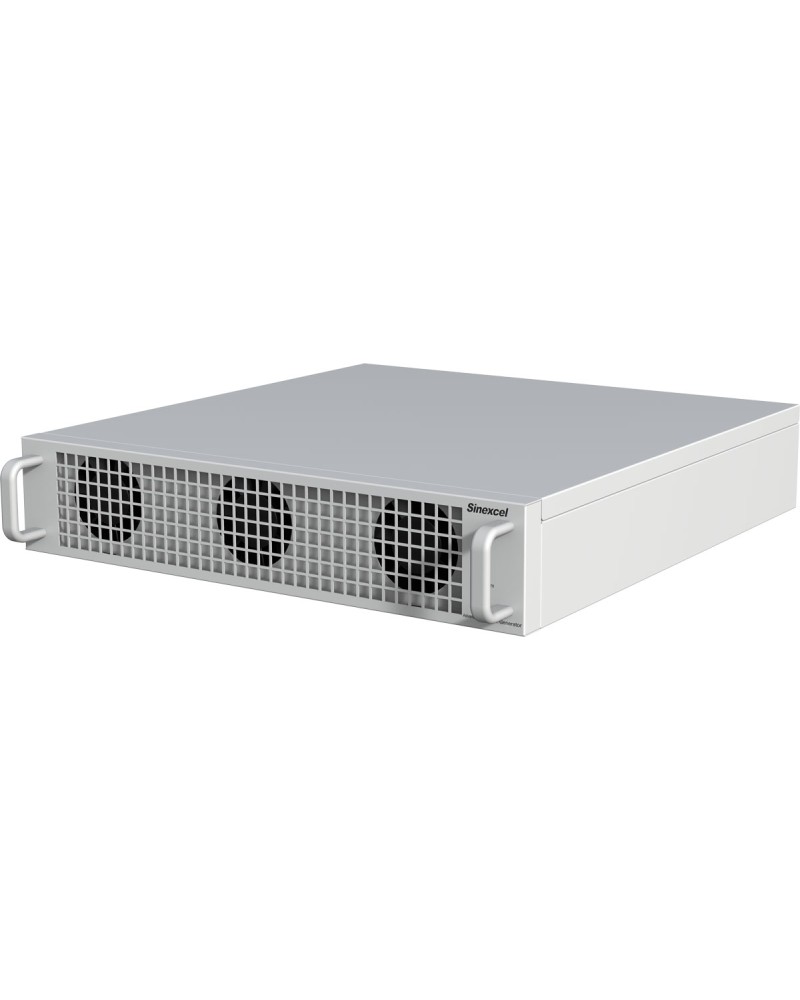

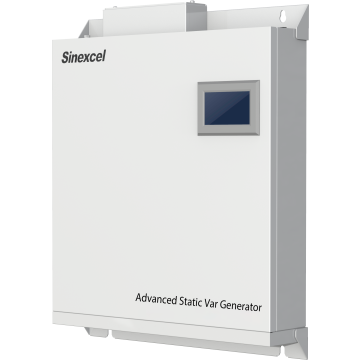

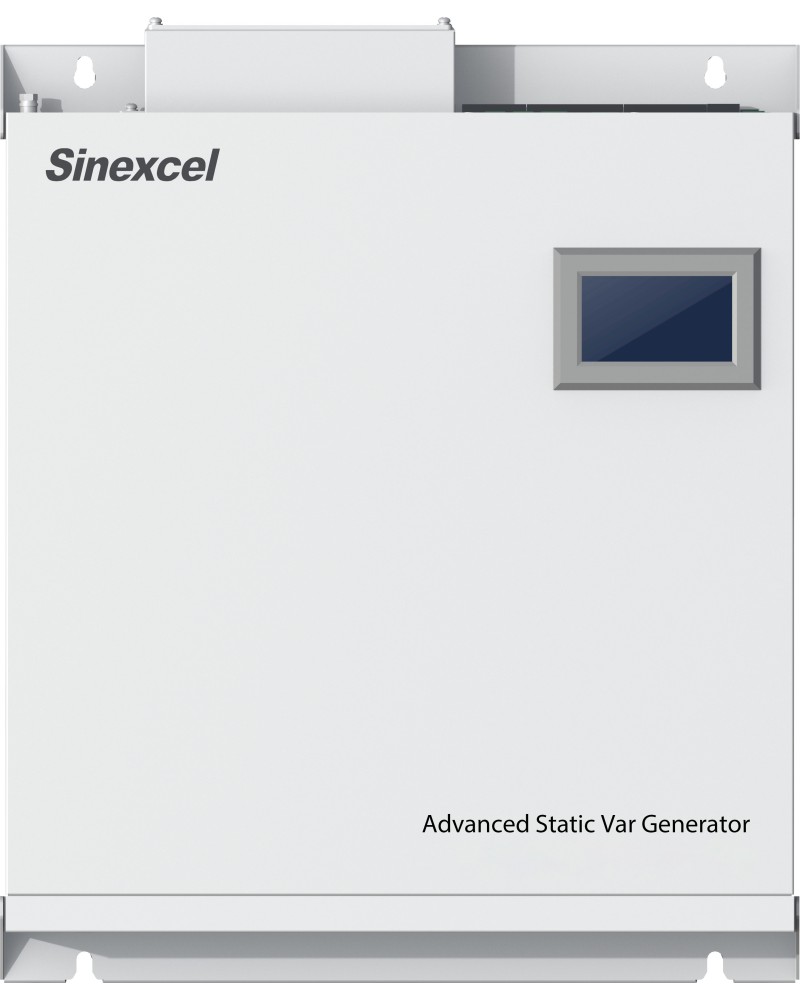

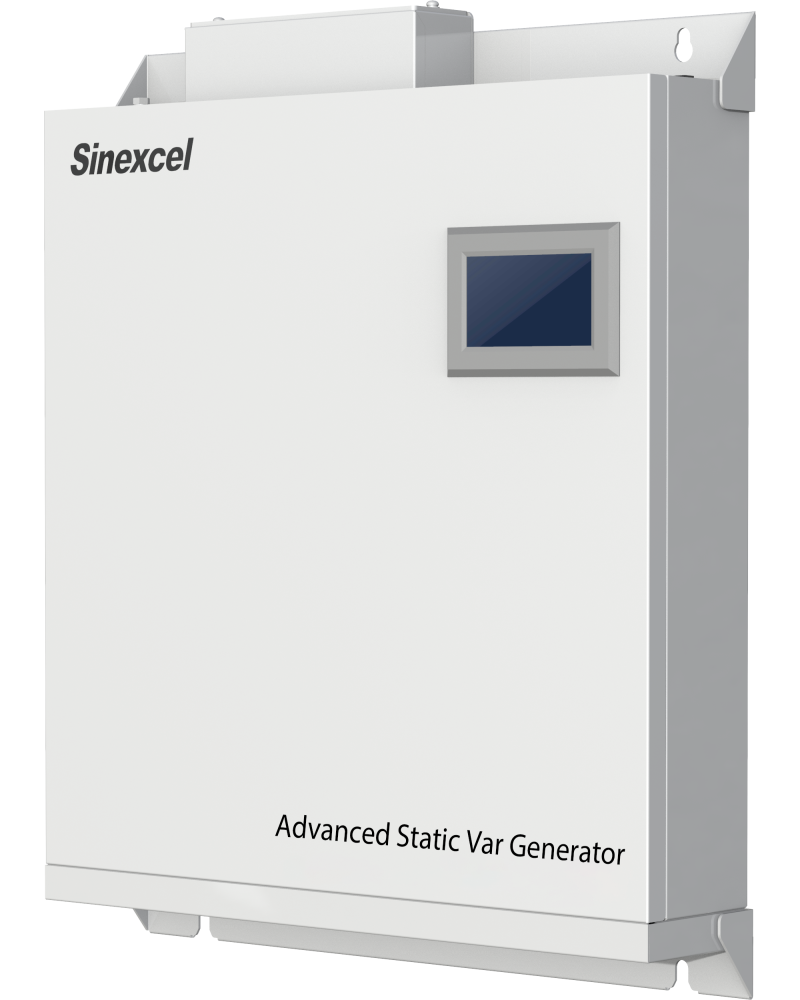

Available in 100 kVAr wall mount and rack mount modules, with 99% efficiency. 400V three phase.

Product Resources

For further documentation, contact us

Ultra Smart Reactive Power Compensation And Harmonic Mitigation In One

Building on the enormous success of the P1 and P2 series ASVG, the new SiC Mosfet design Ultra ASVG raises the performance bar even higher. In addition to the features provide by Ultra SVG, the Ultra ASVG can also correct for harmonic current distortion:

All the features and benefits of the Ultra SVG
Power factor correction and common order harmonic current distortion correction in one unit.
Correction of 3^rd order harmonics caused by single phase non-linear loads such as computer switch mode power supplies, LED lighting, inverter heatpumps. Ultra ASVG is ideal for commercial installations.
Variable Speed Drives controlling air handler units within building HVAC systems can further elevate the 5^th, 7^th, 11^th harmonics.
Industrial installations will often have high levels of variable speed drive loading as automation systems improve efficiencies and productivity. It is no uncommon to see very high levels of current harmonics and voltage harmonic distortion resulting from six pulse VSDs drawing predominantly 5^th, 7^th 11^th harmonics.
Unit capacity can be shared 50/50 between power factor correction and harmonics correction
Mitigation of 3^rd, 5^th, 7^th, 11^th harmonic orders.

Ultra Efficient, Ultra Small, Ultra Light, Ultra Performance

With Silicon Carbide Mosfet design, Ultra ASVG is a high performance, energy efficient reactive power and harmonic distortion management solution that is a game changer in the world of power quality solutions

In the world of power electronics every 0.5% increase in efficiency is a big deal. Ultra ASVG is 99% efficient.
Ultra Compact High Performance in wall mount or cabinet mount. 69% smaller than standard product.
Ultra-light weight. Only 25kg for 100 kVAr.
Ultra efficiency leads to less ventilation requirement. Only 115 l/s airflow for 100 KVAr – a reduction of 71% airflow.
And it’s Ultra quiet at <60dB at full load.

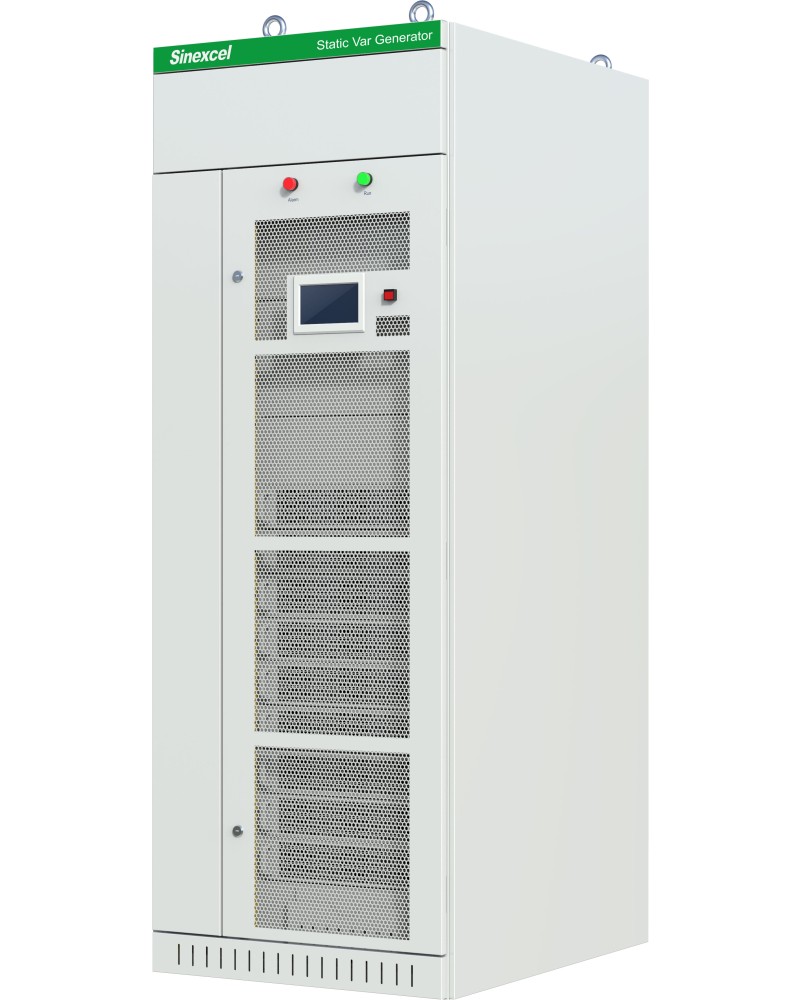

Reduction in Modular design permits up to 800kVAr within a single cabinet.
Can be incorporated into electrical switchboards.
