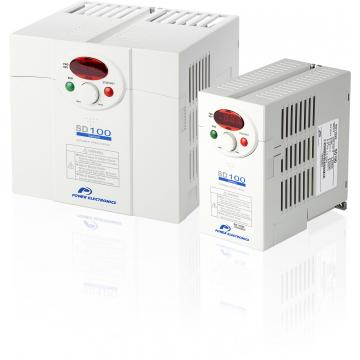

SD100 series VSD

The SD100 is a compact drive for simple applications. Available from 0.37kW to 2.2kW, 230VAC single phase input.

The SD100 series offer a simple yet flexible variable speed drive in a compact and cost effective package. Its exclusive joystick parameter setting system ensures programming and commissioning are simple.

Control Flexibility

  • Set up and commissioning through joystick parameter setting system and LED display, or via serial communications.
  • Extensive on-board motor and drive protections.
  • Comprehensive range of control inputs and outputs.
    • 5 digital inputs / 2 analogue inputs.
    • 2 digital outputs / 1 analogue output.
  • RS232/485 and Modbus RTU compatible.
  • Full on-board PID control.

High Performance and Results

An ideal drive for applications such as milk pumps, conveyors, wood and metal working equipment, fans, dairy turntables and other general installations.

  • V/Hz or sensorless vector control options.
  • Operation to 50 degree C ambient temperature.
  • Conformal coating on all internal circuit boards for optimum protection in harsh environments.
  • Rugged 200% current overload capacity.
  • Enclosed to IP20 protection.
