NB 100 - COMMERCIAL

Fast DC and AC charging with capacities of 2 x 50kW @ 50-500 / 150-1000 VDC and 2 x 43kW AC.

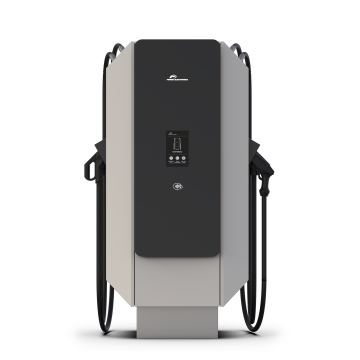

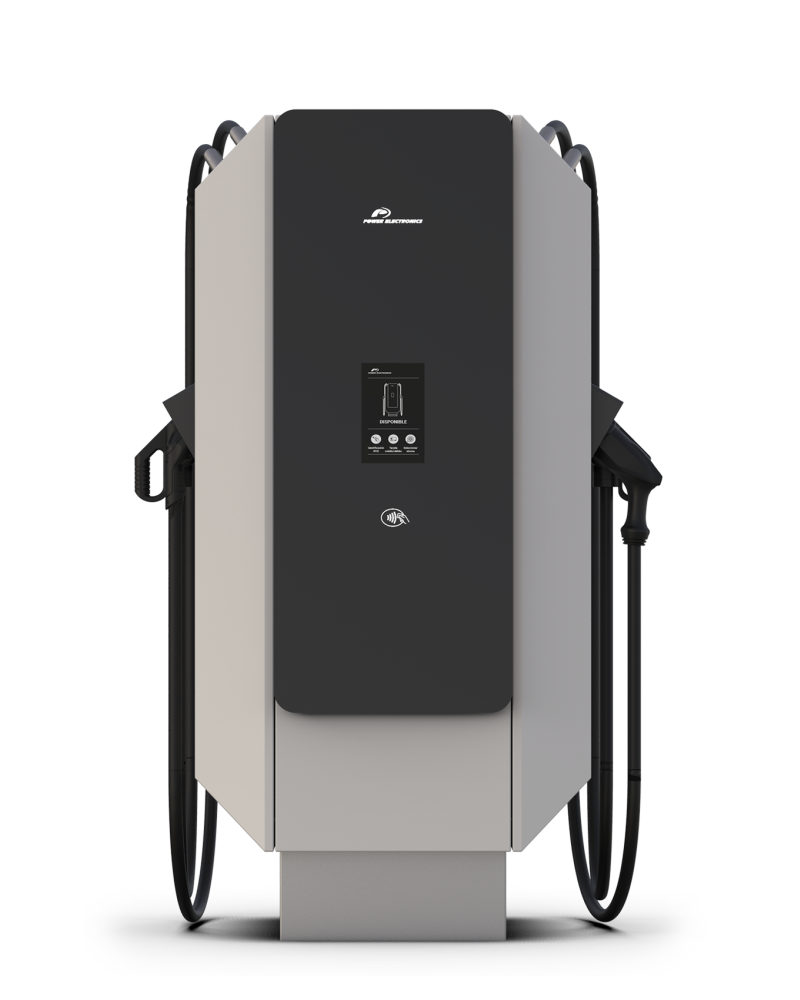

NB 100 is a fast DC and AC charging post, both robust and attractive, and designed with durability, reliability and ease of maintenance in mind. NB 100 charging posts combine aesthetic design with highly advanced functionality.

NB 100 is the ideal fast-charging DC and AC post for both urban and industrial settings. Charging posts are fitted with a 10” touchscreen, which clearly displays the progress of the charging process. It can be equipped with 3G/4G connectivity and an RFID scanner, and configured for compatibility with smartphone-based authentication systems. It also permits the smart management of vehicle fleets.

Each charger can install up to four connectors per post, allowing four vehicles to be charged simultaneously (2 in DC and 2 in AC). It can also connect to a DC power supply to provide electric vehicle charging power. The power source could be photovoltaic energy, a battery system or the utility grid.

Each charging post can be compatible with any system of payment and authentication. This system offers the most useful solutions on the market for easy interaction with the customer, including RFID cards and compatibility with credit/debit cards and smartphones. In order to kick-start your charging business successfully, Power Electronics offers easy integration with any existing back-office system, with APIs based on widely used global standards and communications protocols such as OCPP.

Smart Fleet Management - Our Smart Fleet Management system can balance power to match the number of charging points currently in use. This allows a substantial reduction in the total energy required, which in turn reduces costs in terms of both electrical infrastructure and network connection capacity.

Bus Plus Ready - NB 100 is able to take maximum advantage of an inexhaustible source of power; the sun. NB 100 allows for EV charging from different power sources; photovoltaic field, battery system and utility grid.
