NB DISPENSER - COMMERCIAL

Fast DC and AC charging of 50kW, 100kW, 150kW @ 50-500 / 150-1000 VDC and 22kW or 43kW AC

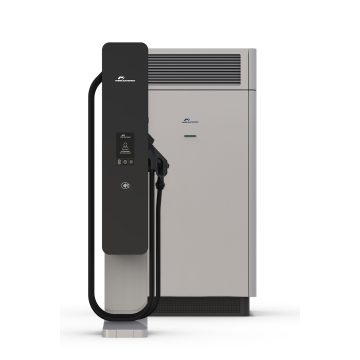

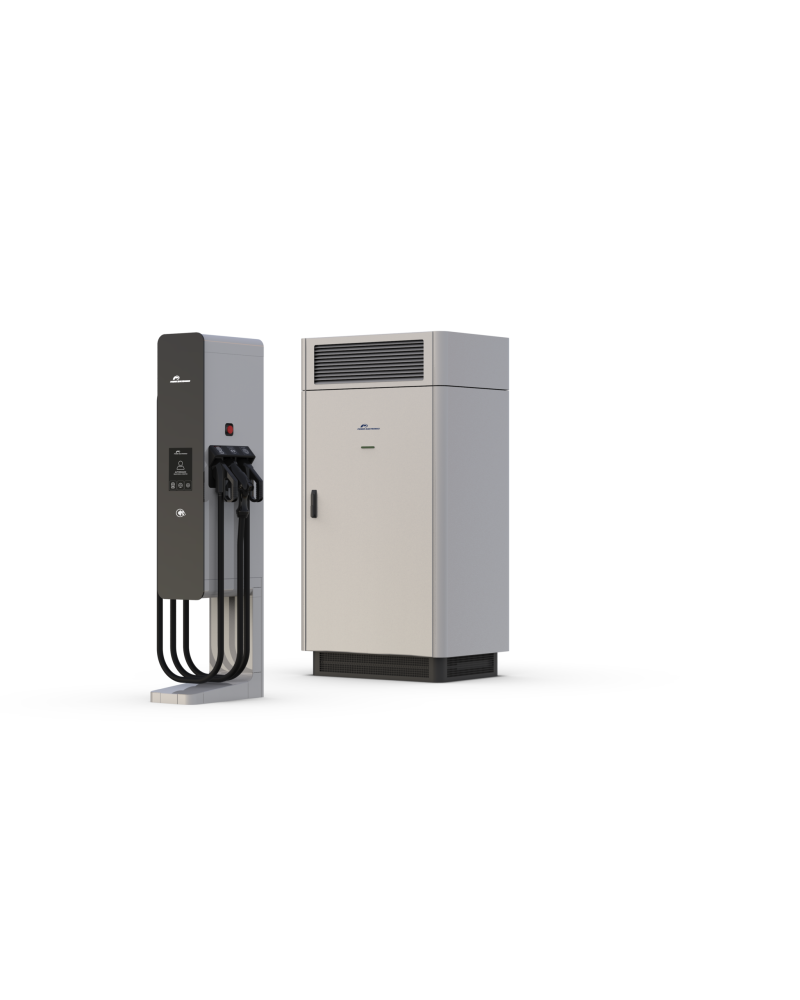

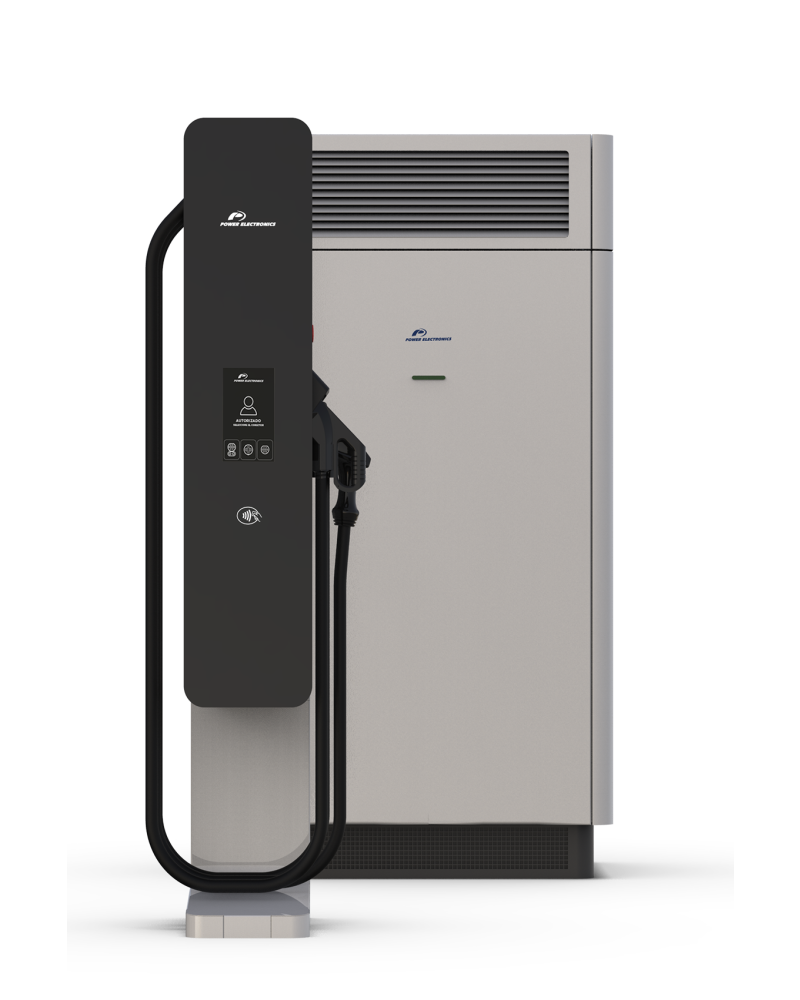

NB Dispenser is an outdoor robust and modular charger, designed for durability, reliability and ease of maintenance. Thanks to its flexible architecture NB Dispenser series allows the installation in any location. NB Dispenser consists of a power cabinet with low voltage input, which combines with commercial posts. NB Dispenser allows the simultaneous charging of three vehicles thanks to the advanced functionality of Smart Power Balance.

Charging posts are fitted with a 10” touchscreen, which clearly displays the progress of the charging process. They can also be supplied with 3G/4G connectivity and compatibility with smartphone-based authentication systems to allow drivers to charge their electric vehicles quickly, easily and securely.

With up to three connector options able to be fitted per post, the NB 50 can simultaneously charge 50kW DC and 43kW AC utilising CCS-2, CHAdeMO, GB/T and AC Type 2 connectors.

Each charging post can be compatible with any system of payment and authentication. This system offers the most useful solutions on the market for easy interaction with the customer, including RFID cards and compatibility with credit/debit cards and smartphones. In order to kick-start your charging business successfully, Power Electronics offers easy integration with any existing back-office system, with APIs based on widely used global standards and communications protocols such as OCPP.

Smart Power Balance – SPB functionality is able to balance the power based on the number of charging posts in use. Therefore, the total power required to supply the total energy is substantially reduced.

Bus Plus Ready - NB Dispenser can connect to a DC power supply to provide electric vehicle charging power. The power source could be the photovoltaic energy, a battery system or the utility grid
